1 Test Case TP-002

1.1 Test Summary

Parameter Value
Software Version Almirah gem version 0.2.4
OS Version Windows 10
Test Result Pass
Test Date 29-Jun-2024
Tester Name Oleksandr Ivanov
Tester Signature n/a

1.2 Preconditions

  1. Ruby is installed
  2. Almirah gem is installed
  3. Git is installed

1.3 Test Procedure

Test Step Test Step Description Expected Output Actual Output Result Req-ID
1 Clone Testing Data Set repository n/a n/a n/a n/a

Feel free to use the following option: git clone https://github.com/OleksandrIvanovDev/Almirah.TDS.git

Test Step Test Step Description Expected Output Actual Output Result Req-ID
2 Navigate to Almirah.TDS folder n/a n/a n/a n/a
3 Switch to branch tp-002 n/a n/a n/a n/a

Feel free to use the following option: git checkout tp-002

Test Step Test Step Description Expected Output Actual Output Result Req-ID
4 Run Almirah gem in the current folder n/a n/a n/a n/a

Feel free to use the following option: Almirah please ./

Test Step Test Step Description Expected Output Actual Output Result Req-ID
5 Navigate to the build folder n/a n/a n/a n/a
6 Open index.html file in the Internet Browser n/a n/a n/a n/a
7 Link to the "Specification C" (see below) n/a n/a n/a n/a

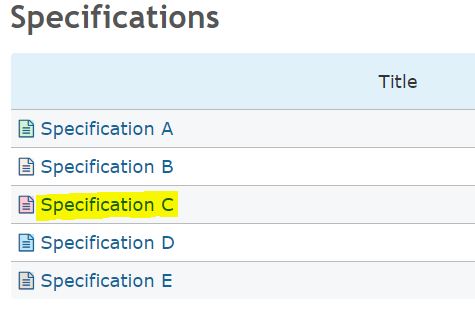

Link to the Specification C

Test Step Test Step Description Expected Output Actual Output Result Req-ID
8 Open index.html file in the Internet Browser n/a n/a n/a
9 Link to the "Specification C" (see below) n/a n/a n/a
10 Check that SPC-001 item has: 2 up-links, 2 down-links, and 4 coverage links see below as expected (see below) pass

Expected output:

Expected Number of links indication

Actual output:

Actual Number of links indication

Test Step Test Step Description Expected Output Actual Output Result Req-ID
11 Click to the up-link number n/a n/a n/a
12 Check that two links "SPA-001" and "SPB-001" are indicated in the "UL" column see below as expected (see below) pass SRS-031

Expected output:

Expected UL column content

Actual output:

Actual UL column content

Test Step Test Step Description Expected Output Actual Output Result Req-ID
13 Click to the down-link number n/a n/a n/a
14 Check that two links "SPD-001" and "SPE-001" are indicated in the "DL" column see below as expected (see below) pass SRS-033

Expected output:

Expected UL column content

Actual output:

Actual UL column content

Test Step Test Step Description Expected Output Actual Output Result Req-ID
15 Click to the coverage link number n/a n/a n/a
16 Check that four links "tdsp-001.2", "tdsp-001.3", "tdsp-002.3", and "tdsp-002.5" are indicated in the "COV" column see below as expected (see below) pass SRS-035

Expected output:

Expected COV column content

Actual output:

Actual COV column content

Test Step Test Step Description Expected Output Actual Output Result Req-ID
17 Check that all the "UL", "DL", "COV" columns indicates the exact IDs instead of number of links see below as expected (see below) pass

Expected output:

Expected state of UL, DL, COV Columns

Actual output:

Actual state of UL, DL, COV Columns
